In-Mold Electronics (IME) is a technology that integrates electronic functions like circuits, sensors, and lighting directly into 3D plastic parts during molding, instead of adding them after assembly. Discover how it is revolutionizing Human-Machine Interface (HMI) design, enabling sleek, durable, and intelligent surfaces across industries. Explore how printed electronics and advanced materials come together in IME, and learn why experienced partners like e2ip are key to unlocking its potential in real-world applications.
Why IME Technology Matters Today
There’s a quiet revolution happening in the way people interact with machines, one that hides technology beneath the surface. In-Mold Electronics (IME) sits at the heart of this transformation, making it possible to design products where function, form, and intelligence come together beautifully.
Think about the illuminated controls on a medical device, or the seamless touch on a home appliance. Traditionally, these features required stacks of components, visible fasteners, and clunky assemblies. IME changes the rules by building electronics right into the very form of a product, freeing designers and engineers alike.
Here’s why that matters: it means more reliable, easily cleaned, and visually stunning surfaces, while reducing weight, cost, and even environmental impact. If you care about smarter, sleeker, and more sustainable products, IME is a technology to watch.
How Does IME Work?
At its core, IME starts with a user experience brought to life by industrial designers who understand how humans want to touch, see, and feel control surfaces. This design is captured as a 3D shape and then “flattened” into 2D layers that can be built up step by step.

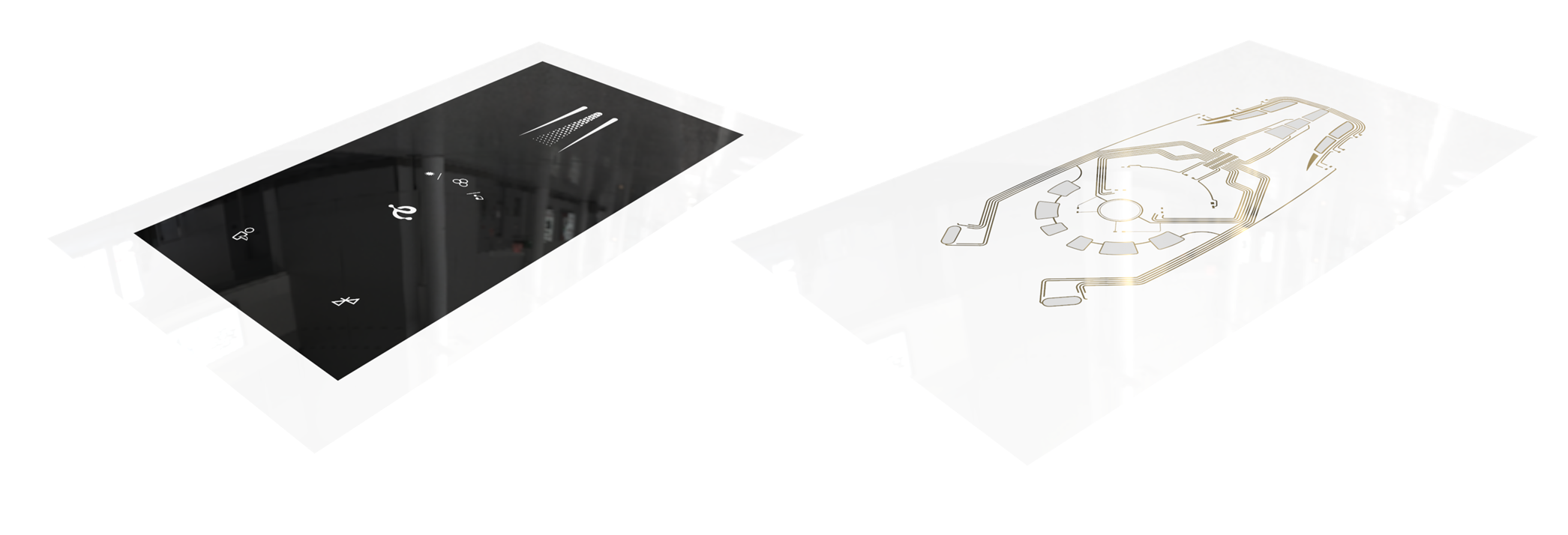

Imagine a sophisticated electronic circuit that has conductive traces, sensors, even light guides, printed directly onto a formable plastic film, using specialized conductive inks and graphic layers. LEDs and other tiny components are then mounted precisely onto this film.

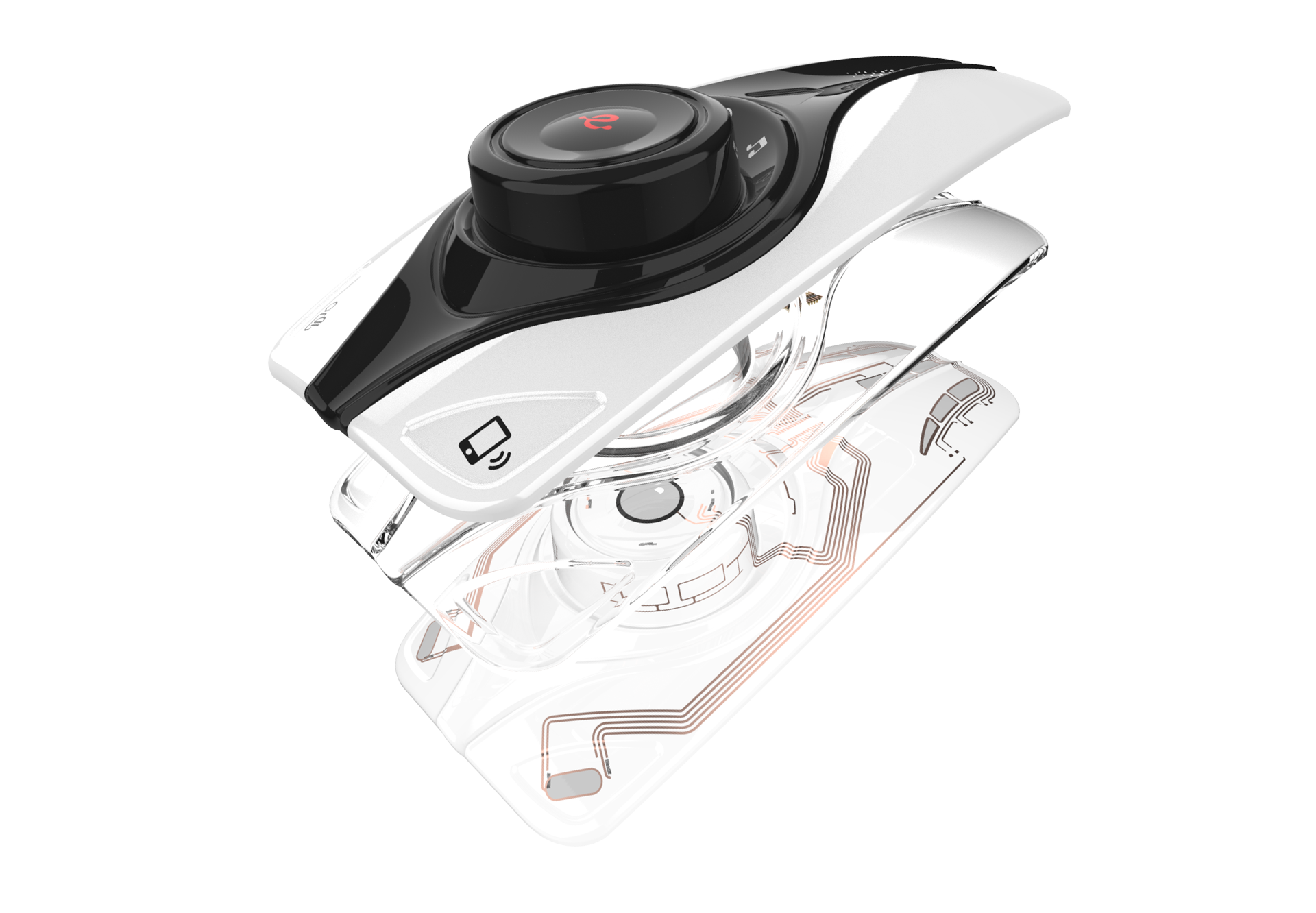

In a carefully controlled, high-pressure forming process, the printed film is heated and shaped into its final 3D form. The electronics, graphics, and components bend and stretch along with the film, ending up perfectly placed in the new shape. Finally, the part is trimmed and placed in a mold, where resin is injected to create a rigid but integrated piece where the electronics are now literally part of the product’s “skin”.
The result: a button, switch, heater, or sensor that’s not just attached to a surface, but IS the surface.
The In-Mold Electronics Manufacturing Process
Every IME project follows a disciplined series of steps, each demanding careful quality control. First, designers and engineers work together to identify the needed features, whether that’s capacitive touch controls, backlighting or heating.
- The journey begins with printing layer upon layer of graphics, conductive tracks, and insulating materials, each selected for their stretchability and durability.
- Next comes the surface mounting of delicate electronic components, often using conductive adhesives in place of traditional soldering. This is where skill and precision really count, as the bonds must withstand both stretching and molding.

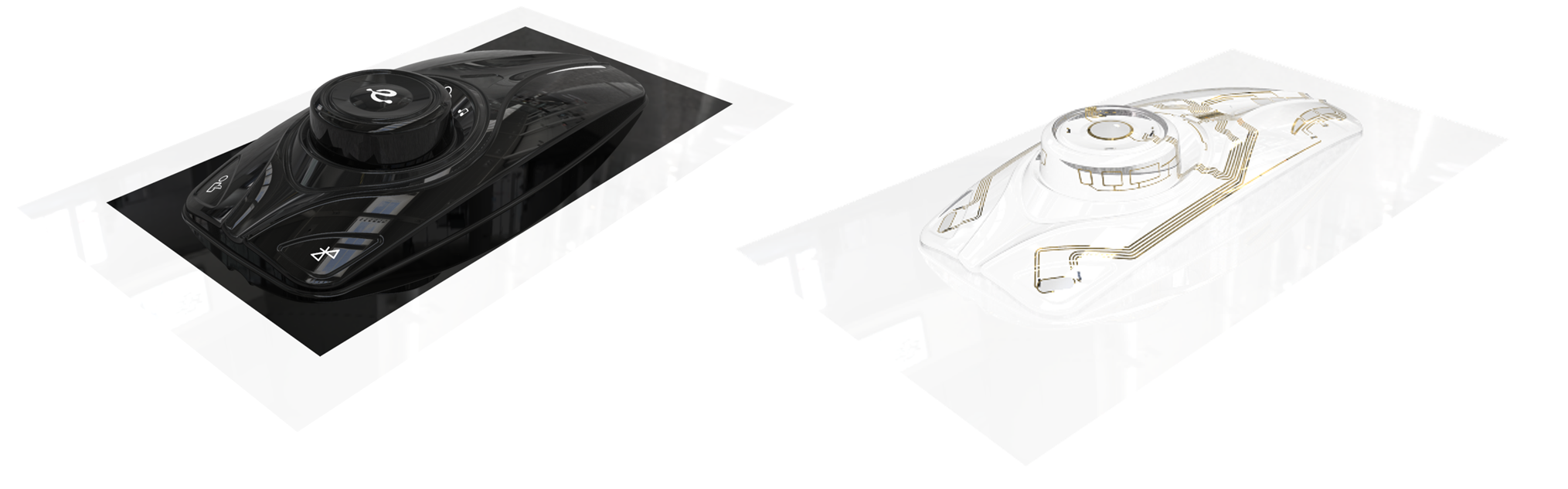

- The next act is thermoforming the printed, component-laden film. The film is heated and pressed into a three-dimensional shape, through a combination of pressure and temperature, that must preserve circuit integrity. Trimming removes excess film, and connectors are attached in ways that guarantee robust electrical connections.
- Finally, injection molding adds structural depth and shields the embedded electronics, encasing everything in a protective plastic shell. A final round of inspection and assembly ensures the end product works flawlessly.
What are the Advantages for Products and People
Products built with IME feel more intuitive and responsive, capacitive switches that respond with a natural touch or customizable lighting that guides and informs.
Because the circuits are protected inside the molded piece, these products offer unparalleled durability and environmental resistance. They’re lighter, use fewer materials, and often consume less energy, therefore contributing to a smaller carbon footprint.
Manufacturers also gain benefits such as fewer assemblies, faster production, and greater design freedom. IME can shape complex, ergonomic curves and integrate adaptive controls at the surface level. Finally for consumers, everyday devices feel more like magic, sleek, safe, and seamlessly interactive.
Why e2ip Sets the Standard
Transitioning to IME isn’t simple. It takes deep know-how in printed electronics, conductive inks, careful selection of materials and precision forming and molding, all while ensuring each layer aligns for both looks and function. Design choices at the start ripple through every step of the process.
This is where a partner like e2ip makes all the difference. From their expertise in printed electronics and conductive inks to advanced HMI solutions and full in-mold electronics capabilities, e2ip brings the full stack: design, engineering, rapid prototyping, and scalable manufacturing.
Whether your goal is smarter surfaces, medical controls, automotive innovation, or integrating sensors, e2ip guides you from concept to finished product. Curious about how IME can unlock new possibilities for your next device reach out to us.
Glossary of Terms
- In-Mold Electronics (IME): A technology that integrates electronic functions like circuits, sensors, and lighting directly into 3D plastic parts during molding, instead of adding them after assembly.
- Human-Machine Interface (HMI): Any system or device that lets a human interact with a machine or electronic product, like touchscreens, control panels, or button arrays.
- Conductive Inks: Special inks made with silver, carbon, or other conductors, used to print electronic circuits on flexible films.
- Thermoforming: A process where heated plastic films are stretched into three-dimensional shapes using pressure and molds.
- Injection Molding: A manufacturing method where melted resin is injected into a mold to form a solid plastic part, encapsulating embedded films and electronics.
- Capacitive Touch: A technology that senses a finger or hand using the body’s natural electrical charge, enabling touch controls without mechanical buttons.
