Rail HMI Installation

A global rail transportation leader, with a diverse portfolio ranging from high-speed trains to automated transit systems, faced significant challenges in managing the integration and maintenance of its expanding fleet—especially following a major acquisition that extended its reach into the North American market.

This international rail manufacturer operates a vast array of vehicles, from driver-operated locomotives to fully autonomous systems. A key obstacle in managing such diversity was the complex and labor-intensive nature of installing essential control interfaces across different platforms.

For manually operated trains, the Driver Machine Interface (DMI)—a sophisticated on-board computer—required deep integration into the Train Control and Monitoring System (TCMS). This process involved extensive point-to-point wiring for both power and data, intricate software setup, and time-consuming validation. On automated systems, the legacy maintenance panels, while less functionally complex, still relied on painstaking manual hardwiring into mission-critical systems such as brakes, doors, and communications.

This level of technical complexity resulted in increased labor costs, extended production schedules, and maintenance downtime, ultimately affecting fleet availability and operational efficiency. The manufacturer needed a streamlined, scalable approach to reduce installation complexity and drive long-term efficiency.

To address these issues, the company engaged e₂ip technologies as a strategic innovation partner. The goal was to rethink the interface architecture from the ground up—delivering a turnkey solution that included design, documentation, software, certification, and manufacturing support.

e₂ip’s core innovation was the elimination of traditional wiring bottlenecks through advanced HMI manufacturing techniques. The result was a smart, integrated surface panel that consolidated multiple functions into a single, durable unit. This modernized interface dramatically simplified installation—reducing reliance on specialized labor, cutting lead times, and lowering costs for both new production and retrofit applications.

A State-of-the-Art Driver Experience

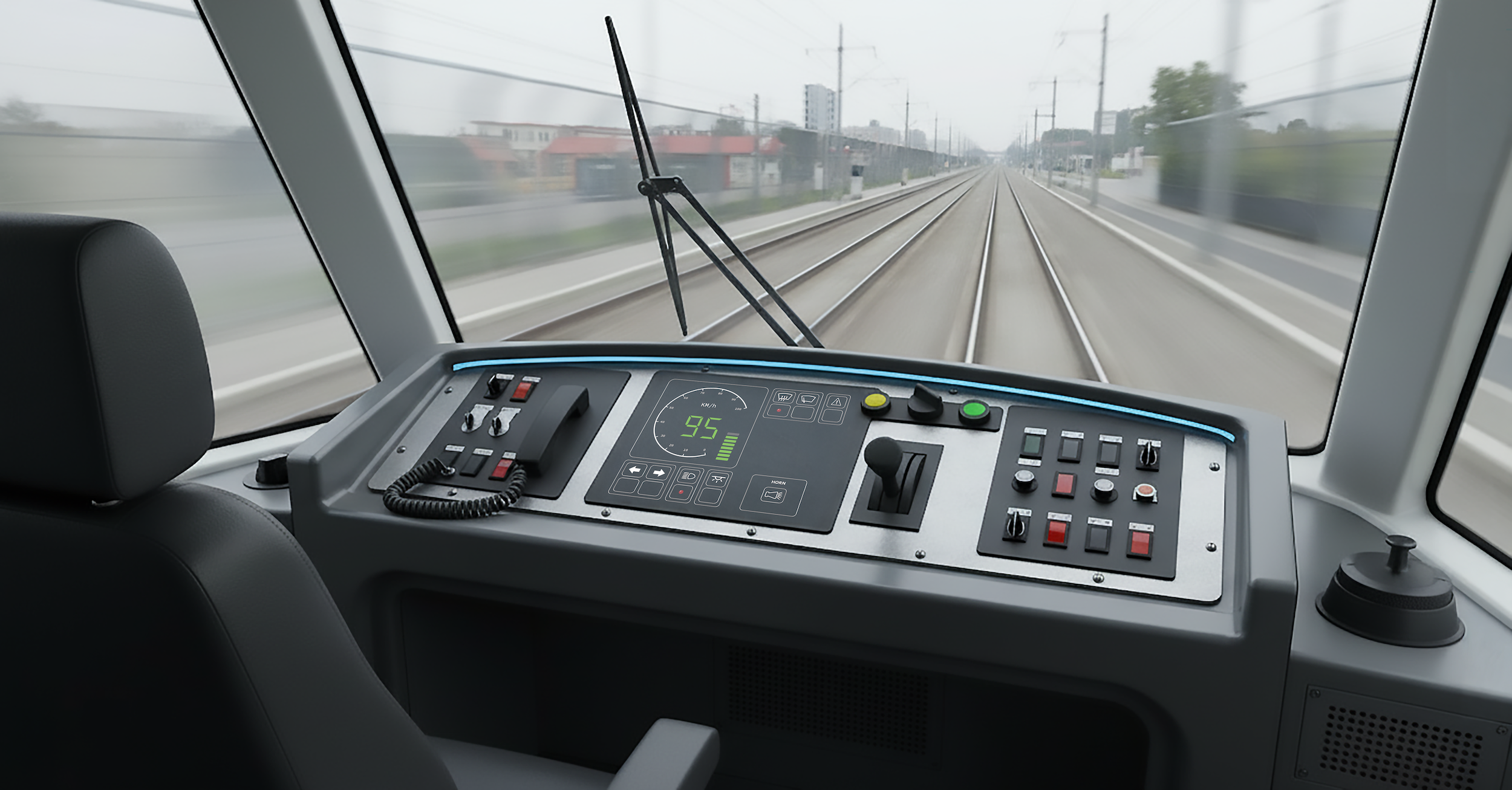

Beyond solving the installation challenges, the redesigned Driver Machine Interface enhanced safety, usability, and regulatory compliance. Designed to meet strict international railway standards, the interface improves driver awareness and reduces cognitive load. Key features of the e₂ip developed DMI include:

• Optimized Layout: The high-resolution touch screen is divided into dedicated zones, ensuring the most critical information, such as speed, signaling limits, and track data, is always presented clearly and intuitively.
  Standardized Color Philosophy: Colors are used to instantly convey urgency, from white/grey for normal status to yellow for advisories, orange for immediate action required, and red for danger or system-initiated emergency braking.
